Used Equipment

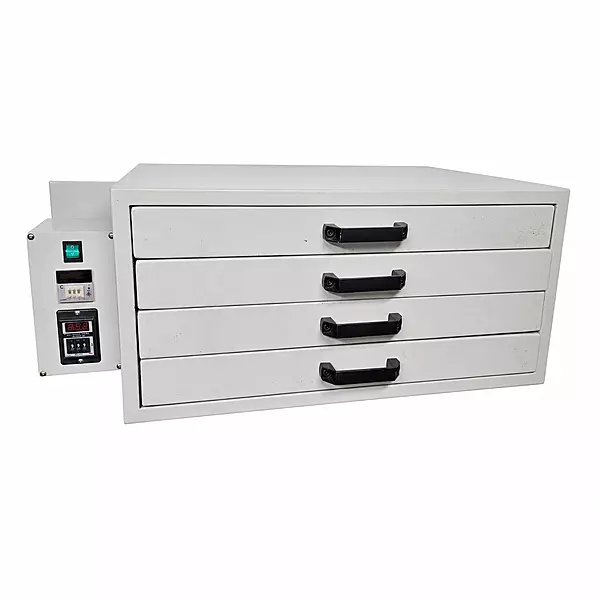

Emulsion will typically need about a day to air dry, with a drying cabinet this time is reduced to minutes. for quick screen production. Has a fan and heating element. Used, metal construction,
- Max 4 frame size 21"x25"x1.75"
- Machine size 90x60x40cm
- Max frame size 64x53x4.5cm
- Highest temperature 78°C
- Power 110v/2000W
- Gross weight 51KGS
According to the heat-resistant temperature of silk screen, the highest temperature of this machine is 78°C or so. Under normal Conditions, set a temperature of 65C is appropriate. The real temperature may have 2-3 C different in temperature because of opening and closing the drawer, room temperature during actual operation, which is normal and does not influence using. This machine will indicate the last set parameters when it is used again because of the automatic date memory functions of the equipped intelligent temp instrument.

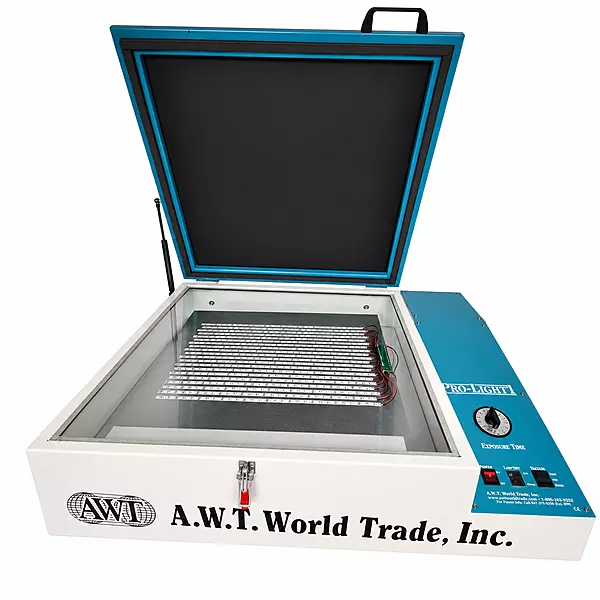

AWT PRO LIGHT 1 - Bench Model
- LED light source upgrade and digital timer
- 8 Lamps Max
- frame Size: 23"x25"
- 115V 1Ph 60Hz
- Motor HP : 3/4
- Amps: 6
Very heavy duty exposure unit with vacuum. Includes custom LED light source upgrade and digital timer. The LED panel replaces the fluorescent tubes and provides much faster exposure times, and an added digital timer provides precise exposure in seconds. Easily revert to fluorescent tubes if wanted. Fluorescent & Blacklight Sources Equipped with a full vacuum frame, these economical systems use banks of focused fluorescent or blacklight tubes to create an efficient and evenly distributed light profile. Featuring a 15-minute timer with automatic shut-off, ProLight 1 is easy to use for both beginners and pros. Nonporous, flexible blanket, quiet vacuum motor and photoclear glass combine to produce accurate copy transmittal and minimize undercutting. Standard Features Flexible live rubber vacuum blanket maintains consistent contact between film positive and mesh; highly distortion resistant. Focused fluorescent lamps direct maximum exposing energy to the screen. Powerful, quiet vacuum motor delivers positive contact instantly. 15-minute timer with automatic shut off.

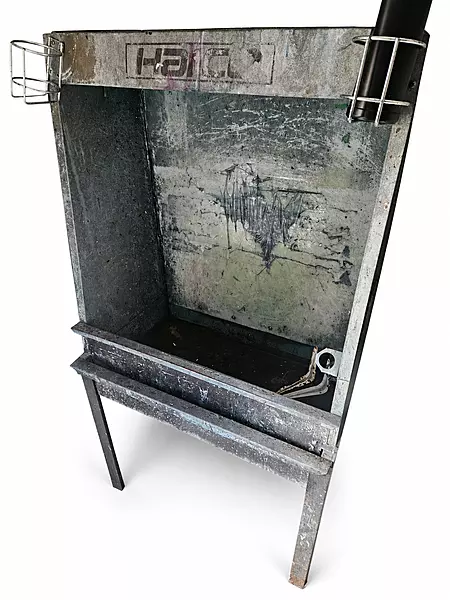

- Opening of ~31"x31"
- For screens up to 23"x31" (25"x36" possible but tight fit)
- Metal construction
- Option to add a light for backlighting.
- Transparent acrylic back panel (the back panel has a few cracks)
